Product Details:
|
Grade: | Light Duty | Types Of Suspension Systems: | Cross Arm Type |
---|---|---|---|
Shape: | Van-type | Self-dumping: | Self-dumping |
ABS Anti-lock Braking System: | ABS Anti-lock Braking System | Condition: | New |
Axle Number: | 2.3.4 | Tire Number: | 8.12.16 |
Warranty: | 1 Year | After-sales Service: | 1 Year |
Transport Package: | Container. Bulk Ship. RO-RO | Specification: | 5.8 Tons |
Trademark: | Jin Rui | Origin: | Liangshan, Shandong Province, China |
Supply Ability: | 3000 | Customization: | Available |
Material: | Steel | Type: | Semi-Trailer |

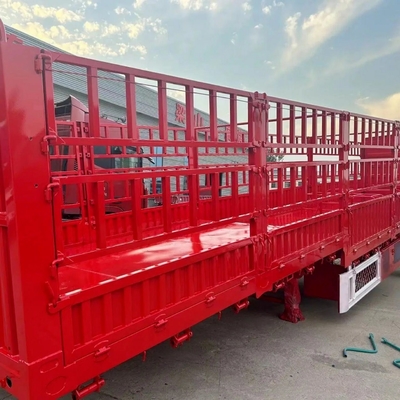

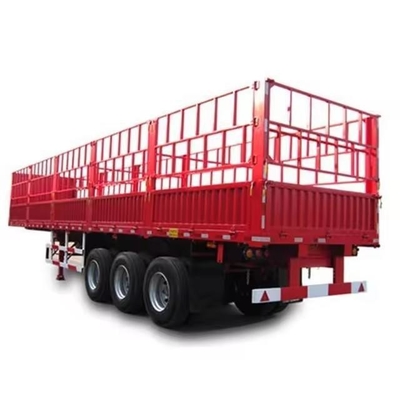

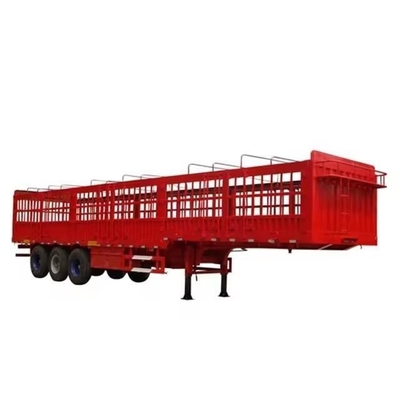

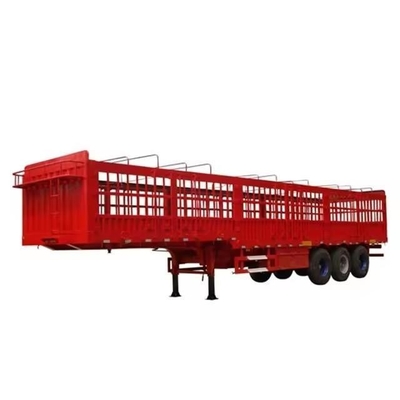

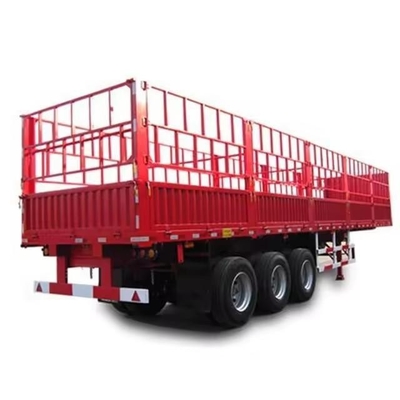

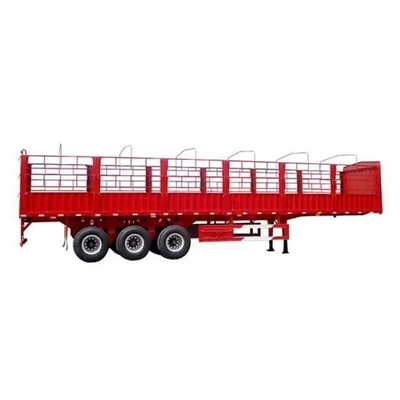

Description | Fence semi trailer |
Dimension(mm) | 13000/12500/12000×2500/2550×3380/3580/3780/3980 |
Vehicle Weight | 6.9T-7.3T |
Loading Capacity | 40-50T |
King Pin | 50#/90# |
Axle | 3*13T FUWA Axles |
Tire | Vacuum tire 12R22.5*12 |
Main Beam | Q345B steel Beam height: 500 mm. Upper plate: 14 mm, Bottom Plate: 16mm. Middle: 8mm |
Landing Gear | single acting,manual operating,heavy duty |
Suspension System | Leaf Spring suspension |
Steel leaf spring | 90(W)mm*13(Thickness)mm*8pcs |
Braking System | Dual line pneumatic brake,with hose and connector |
ABS | Optional |
Electronic System | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Painting | Complete chassis sand blasting to clean rust, 1coat of Environmentally anticorrosive prime, 2coats of baking varnish. |
MOQ | 1 Unit |
