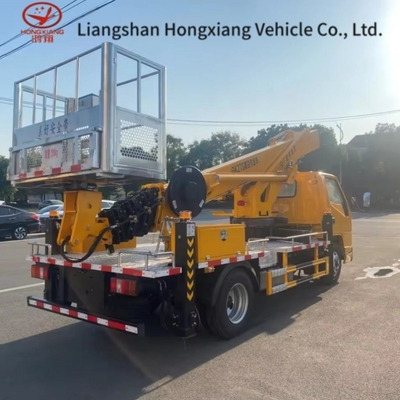

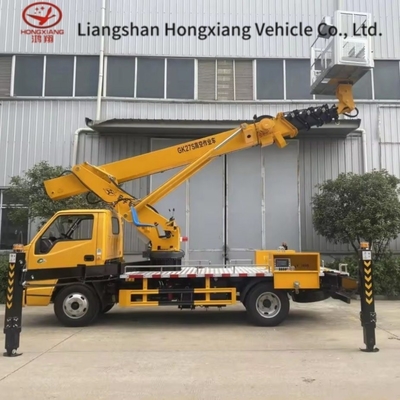

21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel

21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel
21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel 21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel 21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel 21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel 21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel 21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel

Large Image :  21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Delivery Time: Peak Season Lead Time: one month, Off Season Lead Time: one month
Payment Terms: LC, T/T, D/P
Contact Now

21m Truck Mounted Aerial Work Platform Truck with Weichai Engine and 4x2 Drive Wheel

Description
Transmission Type: Manual Drive Wheel: 4x2
Condition: New Brake: Cutoff Brake
Engine: Weichai Quality: High-Quality
Color: Customizable Transport Package: Customer Requirement
Specification: 4495Aerial Vehicle Trademark: Guang Zheng
Origin: Liangshan, Shandong Province, China Supply Ability: 3000
Customization: Available After-sales Service: 1 Year
Warranty: 1 Year

21m Truck Mounted Aerial Working Platform Truck High-Altitude Operation Trucks
21m Truck Mounted Aerial Working Platform Truck High-Altitude Operation Trucks

Product Parameters


Drive Type Left Hand Drive/Right Hand Drive
Vehicle Size(mm) 9000×2500×3900
Net Weight(kg) 18000
Engine Model YC200
Emission Standard Euro 4/Euro 5/Euro 6
Wheelbase 5000mm
Transmission 8-speed transmission
Front/Rear Axle 7T/18T
Frame 300mm straight through triple
Tyre Size 11.00R20 18PR
Container Size 5600x2500x550mm
Other With power steering, power take-off, air brake, lower protection.
 Working angle Full hydraulic, 360 ° Full rotation
 Maximum lifting height 16.9m
 Maximum lifting weight 8T
Quantity of telescopic arm 4-section
Working radius 14.9m
21m Truck Mounted Aerial Working Platform Truck High-Altitude Operation Trucks
21m Truck Mounted Aerial Working Platform Truck High-Altitude Operation Trucks
1, the vehicle lightweight design, the use of imported technology high-strength steel welding, beautiful appearance;
2, the whole vehicle with engine start, flame out and remote oil 1 door switch, easy to operate, save fuel;
The arm comes with a light, which is convenient for night or dark work;
3, the big arm for 6 arms, 5 synchronous telescopic, wire rope arm with spare wire rope, even if the main wire rope disconnected, can also ensure personal safety, smooth down.
4, the operating system are well-known domestic electronic control system, equipped with wireless remote control, three-way operation.
5• Hydraulic system electro-hydraulic ratio adjustment, can be stepless speed regulation, equipped with emergency power source
6, hydraulic legs for H-type legs, 4 telescopic legs, individually adjustable. All around the legs, more stable.
7, safety device on and off interlock, limit protection, emergency power source, two-way hydraulic balance adjustment.
8, others: air conditioning, electric doors and Windows, central control lock.

21m Truck Mounted Aerial Working Platform Truck High-Altitude Operation Trucks
21m Truck Mounted Aerial Working Platform Truck High-Altitude Operation Trucks
Main features:
1. The arm frame and support legs are made of low alloy high-strength profiles, without welds, with a beautiful appearance and strong resistance to deformation.
2. The work platform adopts an external mechanical self balancing design, ensuring that it is always in a balanced state during operation.
3. The work platform is equipped with night work lights, making night work safer.
4. The four hydraulic support legs adopt an H-shaped structure, with a larger force surface and higher stability. Each hydraulic support leg is single
Independently adjustable, it can adjust the support legs to level the entire vehicle even if the ground is uneven according to the working environment
Stable state.
5. The rear legs of the vehicle are equipped with warning outline lights to improve the safety of warning during vehicle operation.
6. The homework arm is a three section folding type with two sets of operating systems, including a work platform and a turntable duplex workstation.
Various operational actions can be completed on both the work platform and the turntable. The interlocking of boarding and alighting ensures safe and reliable operation.
The boarding operation is achieved through a throttle valve for infinite speed regulation, which is equipped with a waterproof cover to prevent rusting and jamming of the valve.
7. The turntable can rotate 360 ° and uses vertical/horizontal reducers, providing greater and safer torque than the worm gear.
8. The turntable and worktable are equipped with remote start and stop switches to control the start and stop of the main engine. When the homework vehicle is working
When the business site is parked for a long time, the ignition switch can be turned on to reduce fuel consumption, save energy and emissions, and be more environmentally friendly
Ji.
9. The hydraulic system is equipped with a hydraulic locking system, which is used to lock the oil cylinder when it reaches the desired position
Stay still to prevent accidents.
10. The use of a dual-purpose electromagnetic and electric control multi way valve with manual and electric integration ensures that even in the event of circuit failure, it can still operate
Ensure the safety of personnel working at heights through manual operation.
11. The steel toolbox and patterned anti slip walkway with stainless steel fence layout are aesthetically pleasing, stable, and easy to maintain.
Working conditions:
--The ground should be solid and flat, and the supporting force should meet the manufacturer's requirements. The ground should not sink during the operation process;
--The ambient temperature is -25 ºC to+40 ºC;
--Wind speed ≤ 12.5m/s (wind speed level 6)-- Altitude ≤ 1000m-- The relative humidity of the non insulating work vehicle environment is ≤ 90% (the ambient temperature is+25 ºC);
--The relative humidity of the insulated work vehicle environment is ≤ 80% (the ambient temperature is+25 ºC);
Note: If this requirement is exceeded, the customer needs to report to the manufacturer for special customized manufacturing.
