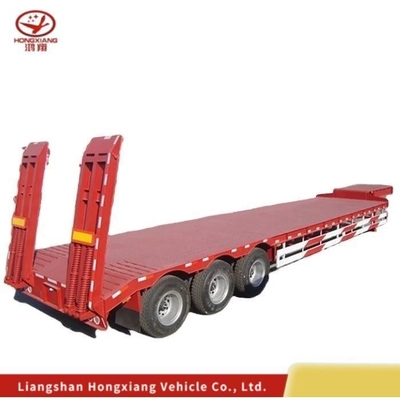

Q345b / T700 Steel Main Beam 3/4 Axle Low Bed Truck Trailer for Heavy Duty Machinery

Large Image : Q345b / T700 Steel Main Beam 3/4 Axle Low Bed Truck Trailer for Heavy Duty Machinery

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Delivery Time:	Peak Season Lead Time: one month, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P

Contact Now

Q345b / T700 Steel Main Beam 3/4 Axle Low Bed Truck Trailer for Heavy Duty Machinery

Description

Tread:	1820mm	Grade:	Light Duty
Types Of Suspension Systems:	Cross Arm Type	Shape:	Van-type
Axle Number:	2.3.4	Tire Number:	8.12.16
Self-dumping:	Not Self-dumping	ABS Anti-lock Braking System:	ABS Anti-lock Braking System
Material:	Steel	Condition:	New
Colors And Logos:	Customization	Ladder:	Mechanical
Spare Wheel Bracket:	2 Pieces	Function:	Transport Heavy Duty Machinery
Main Beam:	Q345b / T700 Steel	Color:	Customized Color
Suspension:	Mechanical Suspension Or Air Suspension	Transport Package:	Container. Bulk Ship. RO-RO
Specification:	5.5 Tons	Trademark:	Jin Rui
Origin:	Liangshan, Shandong Province, China	Supply Ability:	3000
Customization:	Available	After-sales Service:	1 Year
Warranty:	1 Year

Low bed trailers are suitable for transporting heavy-duty vehicles such as tractors, special vehicles, rail vehicles, mining machinery, forestry machinery, and other heavily loaded goods. This kind of trailer has a low center of gravity, which provides greater ability to transport super-tall loads and to pass through height limit roads.

We can also produce the semi trailers like flatbed trailer, Skeleton trailer, dump semi trailer etc.We are manufacturer, provide customized service, design as the customers' every request.We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.

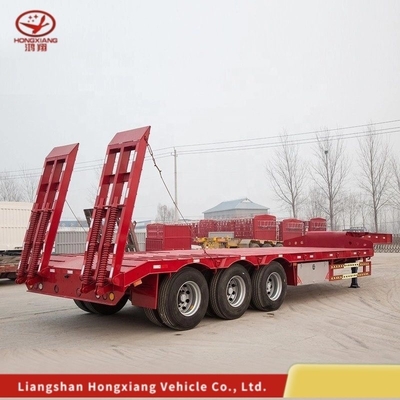

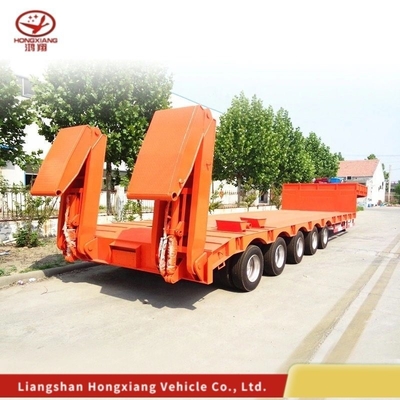

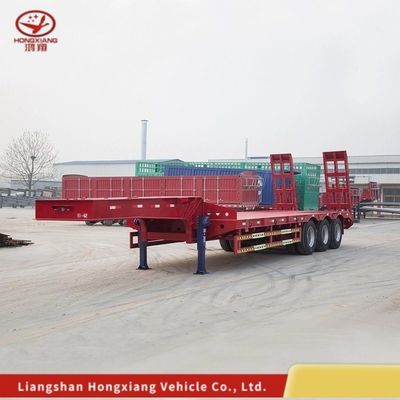

3/4 Axle Low Bed Loader Lowboy/Low Bed Truck Trailer Lowbed Trailer

Main size	Overall length	12500mm
	Overall width	3000mm
	Overall height	1750mm
	Loading capacity	60T.
Chassis	Main beam	Material of high strength steel Q345B. Height 500mm. Top/middle/bottom flange:14/8/16mm. Welded by automatic submerged-processes.
	Main cross beam	Material is high strength steel Q345B. Welded by automatic submerged-arc processes
Loading deck	Material: Carbon steel Q345. Length of 8500mm. Height of 1000mm. Floor thickness 4 mm.
Landing gear	28T model landing gear with static capacity of 60T. Single speed linked type, operated at one side.
King pin	2 inches size, installed on the kingpin plate. 3.5 inches available if want.
Axle	2 sets of 20T model axles, with double tires formation.
Tire	Tire sized 12R22.5, radial tubeless tires. 12 sets of tires assembled with wheel rim per trailer.
Wheel rim	Sized 9.00X22.5, steel wheel rim. 12 pcs of wheel rim per trailer.
Suspension	Mechanical steel suspension system, two axles type. 6 sets of leaf springs installed.
Brake system	Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system	12v/24v light system. LED lights, including side, rear, turning.
ABS system	ABS system installed, HN or Kemi brand.
Others	Color optional. One set of standard tools in tool box.

----Torsional resistance of side and main beams are made of "I" type high strength steel, which is more durable than ordinary trailer steel, ensuring driving stability and handling of low bed trailers on bed roads.

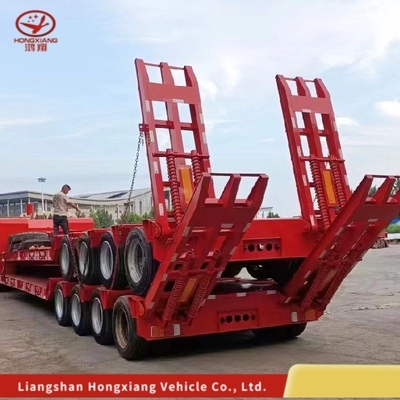

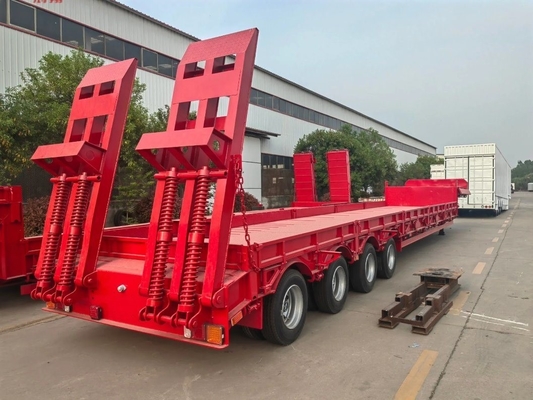

---Heavy Duty Ramps: Manganese plates are butt welded, this design ensures that the ramps can safely support heavy vehicles.
Low bed trailers can be equipped with additional outriggers at the rear of the trailer. This ensures a safer loading machine.
3/4 Axle Low Bed Loader Lowboy/Low Bed Truck Trailer Lowbed Trailer

3 axis cargo semi trailer 1. Cargo semi trailer: 2. Dimensions: 12500,13000 * 2500 * 2840mm 3. Payload: 50000kg-70000kg 4. Tire model: Nylon 1100/1200 or radius 3 axis cargo semi trailer 1. Cargo semi-trailer: 2. Dimensions: 12500,13000 * 2500 * 2840mm 3. Payload: 50000kg-70000kg 4. Tire Model: 1100/1200 nylon or radius Number of axles: 3 Axles: Various axles, such as FUWA and BPW, with different bearings Tires: 1100-20PR, 11.00R20 or 12.00R20 Tire Number: 8 rims: Domestic 8.0 or 8.5 rims: 12 Plate springs: 10/10 Chassis: BW Lever rack Tire replacement device: 2 Toolbox: 1, length 1500mm Number of axles: 2 axles: Different axles, such as FUWA and BPW, with different bearing tires: 3-3PR, 1100.20R11 or 00.20R12 Tyre Number: 00 Rims: Domestic 20.8 or 8.0 Rims: 8 Plate springs Number: 5/12 Chassis: BW Lever pillar Tyre bracket: 10 Kit: 10 pieces, length 2 mm Sidewall thickness (mm) : Side 1 mm, bottom 1500 mm.

3/4 Axle Low Bed Loader Lowboy/Low Bed Truck Trailer Lowbed Trailer

1. How To Buy From Us ? How to Pay?

- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card

2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?

- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...

- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing

3. Whats The Time For Delivery & Arrival ?

- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.

- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.

- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,

25 Workdays Will Be Achieved.

4. If We Can Provide Terms For Reducing Your Import Duties ?

- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
