Product Details:
|
| Model NO.: | EHL9400TPB | Tread: | 1820mm |
|---|---|---|---|
| Grade: | Light Duty | Types Of Suspension Systems: | Cross Arm Type |
| Shape: | Van-type | Axle Number: | 2.3.4 |
| Tire Number: | 8.12.16 | Self-dumping: | Not Self-dumping |
| ABS Anti-lock Braking System: | ABS Anti-lock Braking System | Material: | Steel |
| Condition: | New | Transport Package: | Container. Bulk Ship. RO-RO |
| Specification: | 5.5 Tons | Trademark: | Jin Rui |
| Origin: | Liangshan, Shandong Province, China | Supply Ability: | 3000 |
| Customization: | Available | After-sales Service: | 1 Year |
| Warranty: | 1 Year |
| Product name | side wall semi truck trailer |
| Size | 13000x2550x2700mm (Optional) |
| Tyre specifications | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
| Axles | 13T/16T,FUWA/BPW/YAHUA / brand or optional |
| Suspension | Mechanical suspension(German Type or America Type) or Air suspension |
| Payload | 30T-80T |
| Rim | 8.00-20/8.5-20/8.8-20 (Patent of electrophoretic paint) |
| Spring leaf | 8/8/8, 10/10/10, 12/12/12 pieces |
| King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Support leg | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |

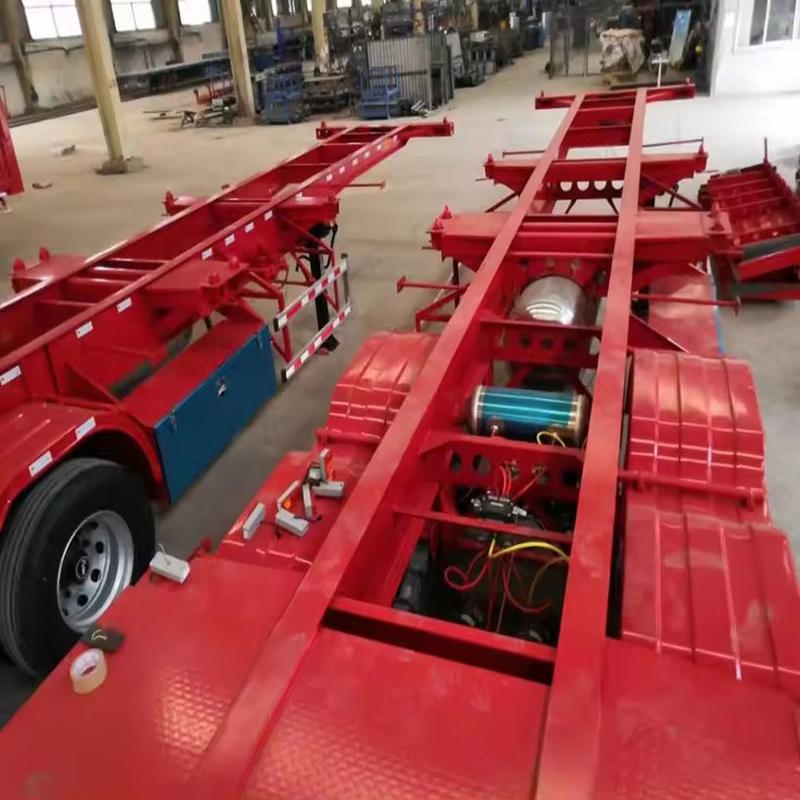

| Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel . |
| Usage | For bulk cargo/container transportation |
| Brake System | Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
| Twist Locks | Four ,Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
| Electrical system | 24V,7 pin socket,One set 7-core standard Cable |

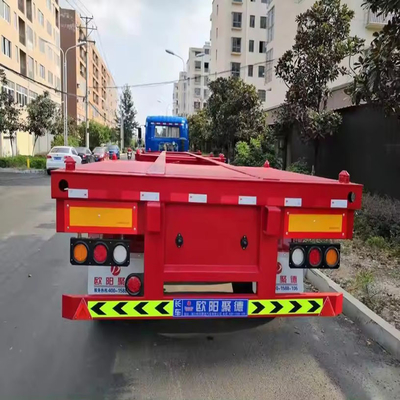

| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Tool box | 1 set |
| Spare tire carrier | 2 sets |
| Color and Logo | Depends on the buyer's requirement. |
