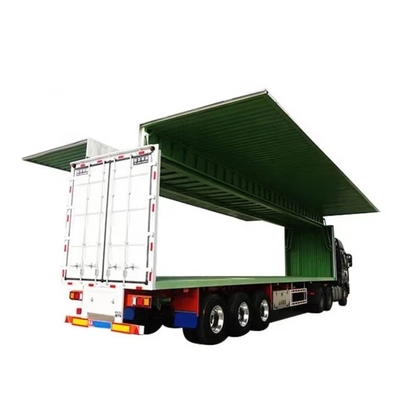

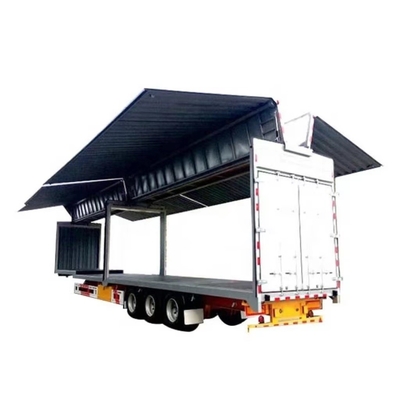

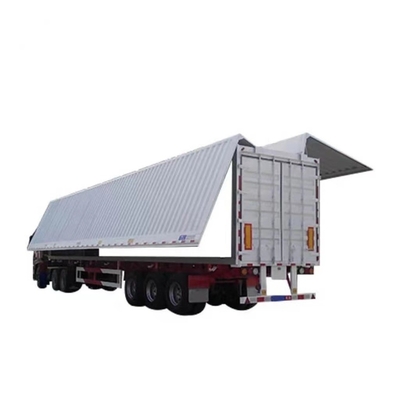

12 Meters Steel Box-Type 3-Axis Container Transport Semi-Trailer with Spinner Wing

Overall dimensions (length * width * height) 13000×2550×2000 mm
Kingpin set 1263 mm
Axis space 6550 mm +1310 mm +1310 mm
The car is 1 mm thick
Tare 8600 kg
The payload is 50,000 kg
G.V.W.R 58600 kg
The height of the van is 2000 mm

Settings:

Main beam 500,14/6/14 mm
Sidewall 16# section steel
Floor 3 mm flat base
Beam rectangular tube
Bawangyost 3.5' welded model
Landing gear Yost 28T double operation
Shaft Fuwa shaft, 16 tons capacity/set, 3
Tires 12.00R20
Edge 8.5-20
Brake System Dual air brake system, WABco relay emergency valve, no ABS system.
Brake chamber 30/30 model on all axles
Toolbox 1000 mm, 1 piece
Spare tire carrier 2 units
Voltage 24
Socket 7 holes
Drawing according to customer requirements
