Product Details:
|
| Tread: | 1820mm | Grade: | Medium Duty |
|---|---|---|---|
| Types Of Suspension Systems: | Multi-link Type | Shape: | Flatbed |
| Axle Number: | 2/3/4 | Tire Number: | 8/12/16 |
| Self-dumping: | Not Self-dumping | ABS Anti-lock Braking System: | ABS Anti-lock Braking System |
| Material: | Steel | Condition: | New |
| Immobilize: | Dual Line Braking System | Colour: | Customer Requirement |
| Transport Package: | According To The Customer′s Requirements | Specification: | 5.5 Tons |
| Trademark: | Jin Rui | Origin: | Liangshan, Shandong Province, China |
| Supply Ability: | 3000 | Customization: | Available |
| After-sales Service: | 1 Year | Warranty: | 1 Year |

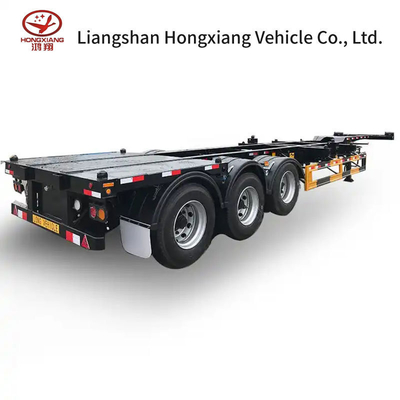

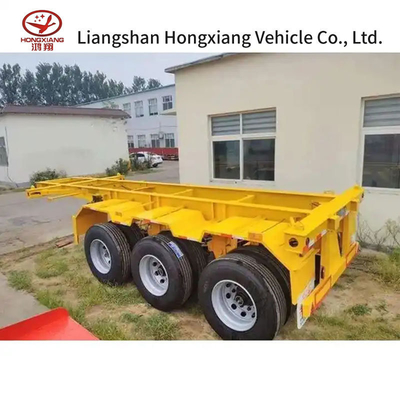

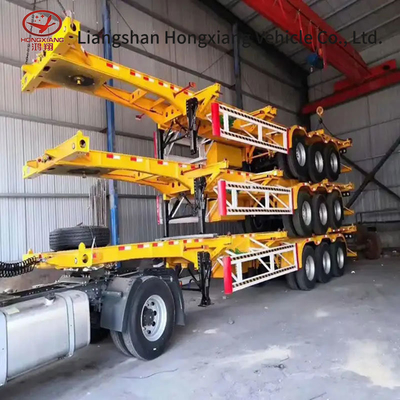

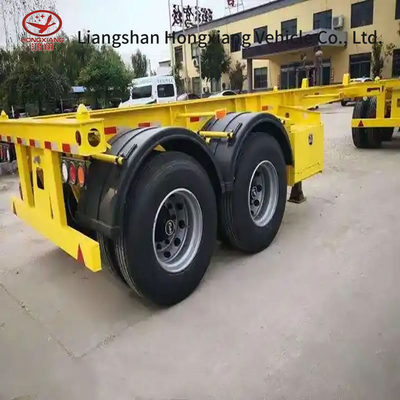

| Parameters of Skeleton Semi Trailer/ Chassis Semi Trailer | |||
| Type | 20 Feet Skeleton Semi Trailer | 40 Feet Skeleton Semi Trailer | 45 Feet Skeleton Semi Trailer |
| Axle | 2 Axles/3 Axles | 2 Axles/3 Axles/ 4 Axles | 2 Axles/3 Axles/ 4 Axles |
| Application | Transporting 20ft Contanier | Transporting: 1*40/2*20 Feet Container | Transporting: 1*40/1*45/2*20 Feet Container |
| Loading Capacity | 20-50T | 30-80 Tons | 30-80 Tons |
| OEM/ODM | Yes | Yes | Yes |
| SKD/CKD Cooperation | Yes | Yes | Yes |
| Goose Type | Yes | Yes | Yes |
| Tandem Type | Yes | Yes | Yes |
| Main Beam | Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 |
| Height: 500mm | Height: 500mm | Height: 500mm | |
| Upper Plate Thickness: 12mm | Upper Plate Thickness:14mm | Upper Plate Thickness:10mm | |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 6mm | Middle Plate Thickness:5mm | |
| Low Plate Thickness: 12mm | Low Plate Thickness: 16mm | Low Plate Thickness: 10mm | |
| Product Size(L×W×H) | 7000mm* 2480mm* 1560mm | 12400mm*2480mm* 1580mm | 13950mm*2500mm* 1600mm |
| Axles | 2/3 Axles *13 Ton BESTRADE/FUWA/BPW | 3/4 Axles *13 Ton BESTRADE/FUWA/BPW | 3/4 Axles *13/16 Ton BESTRADE/FUWA/BPW |
| Rim | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.0*22.5 (12/16 Pieces) Steel/Aluminum | 9.0*22.5 (12/16 Pieces) Steel/Aluminum |
| Leaf Spring | 90mm*13mm*10/90mm* 16mm*10 | 90mm*13mm*10/90mm* 16mm*10 | 90mm*13mm*10/90mm* 16mm*10 |
| King Pin | 50#(2")/90#(3.5") JOST/Other Brand Optional | 50#(2")/90#(3.5") JOST/Other Brand Optional | 50#(2")/90#(3.5") JOST/Other Brand Optional |
| Landing Gear | 28 Tons Two Speed, JOST/Other Brand Optional | 28 Tons Two Speed, JOST/Other Brand Optional | 28 Tons Two Speed, JOST/Other Brand Optional |
| Twist Lock | 4 sets | 12 sets | 12 sets |
| Vehicle Painting | Electrostatic Powder Coating | Electrostatic Powder Coating | Electrostatic Powder Coating |
| The pictures and technical parameters are for reference only, please kindly refer to the final products' requirements. | |||
![]()
![]()
![]()
![]()
![]()
