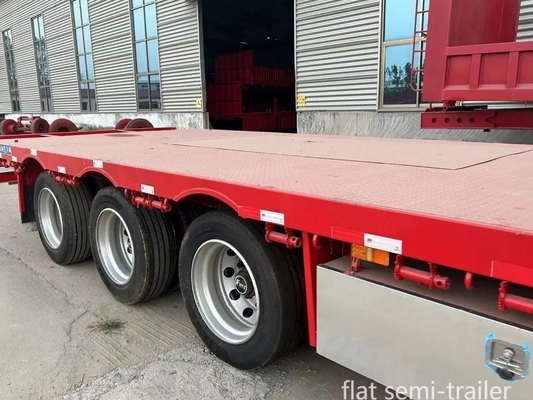

Building Materials and Agricultural Equipment 13m Trailer Flat Bed with 8.12.16 Tires

Large Image : Building Materials and Agricultural Equipment 13m Trailer Flat Bed with 8.12.16 Tires

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Delivery Time:	Peak Season Lead Time: one month, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P

Contact Now

Building Materials and Agricultural Equipment 13m Trailer Flat Bed with 8.12.16 Tires

Description

Model NO.:	EHL9400ZHX	Tread:	1820mm
Grade:	Light Duty	Types Of Suspension Systems:	Cross Arm Type
Shape:	Van-type	Axle Number:	2.3.4
Tire Number:	8.12.16	Self-dumping:	Not Self-dumping
ABS Anti-lock Braking System:	ABS Anti-lock Braking System	Material:	Steel
Condition:	New	Use:	Truck Trailer
Product Name:	Flatbed Trailers	Loading Capacity:	60tons
Application:	Building Materials And Agricultural Equipment	Axles:	3 Units
Transport Package:	Container. Bulk Ship. RO-RO	Specification:	5.5 Tons
Trademark:	Jin Rui	Origin:	Liangshan, Shandong Province, China
Supply Ability:	3000	Customization:	Available
After-sales Service:	1 Year	Warranty:	1 Year

Flatbed semi-trailers are designed to transport various types of cargoes, including large, heavy, irregularly shaped, and oversize goods. They do not have fixed side walls and roofs, making it convenient to load and unload goods. Flatbed trailers come in different sizes and configurations, typically equipped with detachable sides and stakes to increase the flexibility of cargo transportation. This flexibility allows flatbed semi-trailers to be used for a wide range of transportation needs, from construction materials to agricultural equipment, and more. The vehicle body is made of high-strength international steel, ensuring its lightweight, torsional resistance, seismic resistance, and bump resistance capabilities, thus meeting different road load capacities. Low Bed Trailer 13m Trailer Flat Bed

Flatbed Semi Trailer Specification
20FT FLATBED SEMI TRAILER	40FT FLATBED SEMI TRAILER	45FT FLATBED SEMI TRAILER
2 Axles/3 Axles	2 Axles/3 Axles /4 Axles	3 Axles /4 Axles
20ft container or cargo loading	140ft/220ft Container or cargo loading	140ft/145ft container or cargo loading
Loading Capacity: 20 - 60 Tons	Loading Capacity: 30 - 80 Tons	Loading Capacity: 30 - 80 Tons
Gooseneck Type: Yes	Gooseneck Type: Yes	Gooseneck Type: Yes
Tandem Type: Yes	Tandem Type: Yes	Tandem Type: Yes
Main Beam
Material: Q345/T700	Material: Q345/T700	Material: Q345/T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 16mm	Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 10mm	Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm	Lower Plate Thickness: 18mm	Lower Plate Thickness: 18mm
Height: 500mm	Height: 500mm	Height: 500mm
Platform Thickness: 2.5mm	Platform Thickness: 3mm	Platform Thickness: 3mm
Product Dimension
L 7000mmW 2500mmH 1570mm	L 12400mmW 2500mmH 1570mm	L 13950mmW 2500mmH 1600mm
Axles
2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other	2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other	2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other
Tire
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum	9.00*22.5 (8/12 Pieces) Steel/Aluminum	9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring
90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs
King Pin
50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Ton Two Speed,JOST/Other Brand	28 Ton Two Speed,JOST/Other Brand	28 Ton Two Speed,JOST/Other Brand
Twist Lock
4 Sets	12 Sets	12 Sets
Vehicle Painting
Electrophoresis painting	Electrophoresis painting	Electrophoresis painting

3 axis cargo semi trailer 1. Cargo semi trailer: 2. Dimensions: 12500,13000 * 2500 * 2840mm 3. Payload: 50000kg-70000kg 4. Tire model: Nylon 1100/1200 or radius 3 axis cargo semi trailer 1. Cargo semi-trailer: 2. Dimensions: 12500,13000 * 2500 * 2840mm 3. Payload: 50000kg-70000kg 4. Tire Model: 1100/1200 nylon or radius Number of axles: 3 Axles: Various axles, such as FUWA and BPW, with different bearings Tires: 1100-20PR, 11.00R20 or 12.00R20 Tire Number: 8 rims: Domestic 8.0 or 8.5 rims: 12 Plate springs: 10/10 Chassis: BW Lever rack Tire replacement device: 2 Toolbox: 1, length 1500mm Number of axles: 2 axles: Different axles, such as FUWA and BPW, with different bearing tires: 3-3PR, 1100.20R11 or 00.20R12 Tyre Number: 00 Rims: Domestic 20.8 or 8.0 Rims: 8 Plate springs Number: 5/12 Chassis: BW Lever pillar Tyre bracket: 10 Kit: 10 pieces, length 2 mm Sidewall thickness (mm) : Side 1 mm, bottom 1500 mm.

1. How To Buy From Us ? How to Pay?

- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card

2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?

- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...

- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing

3. Whats The Time For Delivery & Arrival ?

- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.

- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.

- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,

25 Workdays Will Be Achieved.

4. If We Can Provide Terms For Reducing Your Import Duties ?

- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction

Adopting high-strength international steel material, it has the characteristic of lightweight. This material ensures the vehicle's resistance to distortion, shock, and bumps, enabling it to carry goods under different road conditions. Low Bed Trailer 13m Trailer Flat Bed

Convenient loading and unloading of goods: Goods can be directly placed on the vehicle platform from the side or top using a crane or forklift, saving loading and unloading time and labor costs. Low Bed Trailer 13m Trailer Flat Bed

The entire frame is shot blasted to effectively eliminate welding residues. The car body is electrophoretic coated, resistant to coating, and the coating effect can last for more than 10 years. Low Bed Trailer 13m Trailer Flat Bed
