60 Tons Heavy Duty Dumping Truck Dump Trailer Sinotruk 3/4 Axle Tipping Tipper Trailer

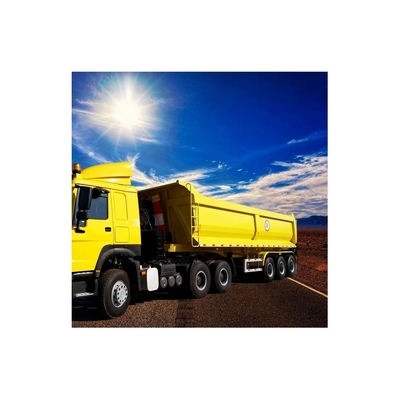

Large Image : 60 Tons Heavy Duty Dumping Truck Dump Trailer Sinotruk 3/4 Axle Tipping Tipper Trailer

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Delivery Time:	Peak Season Lead Time: one month, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P

Contact Now

60 Tons Heavy Duty Dumping Truck Dump Trailer Sinotruk 3/4 Axle Tipping Tipper Trailer

Description

Model NO.:	EHL9400Z	Shape:	Flatbed
Axle Number:	3/4/5/6	Tire Number:	12/16/20/24
Self-dumping:	Self-dumping	ABS Anti-lock Braking System:	ABS Anti-lock Braking System
Material:	Steel	Condition:	New
Use:	Truck Trailer	Product Name:	6 Axle Rear End Tipper Truck Dumper Semi Trailer D
Suspension:	Mechanical Suspension	Function:	Transport Heavy Duty Machinery
Color:	Custom′s Requirement	Transport Package:	Container. Bulk Ship. RO-RO
Specification:	By The Customer Needs	Trademark:	Jinrui
Origin:	Shandong Province China	Supply Ability:	3000
Customization:	Available	After-sales Service:	1 Year
Warranty:	1 Year

Low Prices Tri Axle 50 Ton Heavy Duty Dump Trailers Mining Tipper Truck Trailer

Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance. The advanced software optimizes the design of the products to meet the individual needs of customers. The process tooling of flow operation ensures the excellent quality of products.

Loading Capacity	40-50 tons	50-70 tons
Axle	3 pieces, 13T FUWA/BPW axle	4 pieces, 13T FUWA/BPW axle
Tyre	12 pieces, 12.00R20	16 pieces, 12.00R20
Dimensions(LxWxH)	9750 to 12000mm x 2500 x 3200mm
Tare weight	10 tons to 12 tons
Axle spacing	1310mm
Rims	8.5-20, 9.0-20
Suspension System	Leaf spring suspension / air suspension
Brake System	Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam	Height 500mm Q345
Chassis	upper 14mm, lower 16mm. Mid web 12mm
Dump Box Thickness	Bottom 8mm Side 6mm
Kingpin	2' or 3.5' interchangeable
Landing Gear	28 Tons , Two speed manual operation
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Spare Tyre Carrier	One piece or two pieces

Features: 1. A variety of types for you to choose: skeleton type/plate type/U type. 2. Axle 2/3/4/6 can be used for different road conditions. 3. Straight beam or gooseneck type optional. 4. Provide container twist locks. 5. After dumping, quick unloading, clean unloading. 6. Different lengths are optional. High fence up to 2000mm.7. Multiple ways to open doors.

1. Steel structure: The steel frame is made of first-class hot rolled or rolled steel plates, automatic welding of longitudinal beams, and advanced sanding and painting processes are used as preliminary treatment. 2. Different types of suspension are designed for various working conditions: bogie suspension; Air suspension; Mechanical suspension. 3. The lamp assembly adopts advanced LED lights, high quality PC and cast wiring harness of double circuit design. 4. Optional automatic tire inflation and pressure sensor system to improve safety and fuel economy. 5. The most advanced testing equipment: analyze the composition, hardness and phase of the metal to ensure the standard of processing materials; Check and modify weld defects, paint thickness and adhesion to ensure finished product quality.

Why choose us? We are the promoters of trucks We focus on manufacturing and sales We have a more professional design team to meet customer needs, make requirements, can be customized according to customer requirements. In short, the customer is the purpose of our service, does not affect the quality. All production according to customer requirements!!

1. How To Buy From Us ? How to Pay?

- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card

2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?

- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...

- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing

3. Whats The Time For Delivery & Arrival ?

- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.

- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.

- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,

25 Workdays Will Be Achieved.

4. If We Can Provide Terms For Reducing Your Import Duties ?

- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
