Product Details:
|
| Model NO.: | EHL9400ZHX | Tread: | 1820mm |
|---|---|---|---|
| Grade: | Light Duty | Types Of Suspension Systems: | Cross Arm Type |
| Shape: | Van-type | Axle Number: | 2.3.4 |
| Tire Number: | 8.12.16 | Self-dumping: | Self-dumping |
| ABS Anti-lock Braking System: | ABS Anti-lock Braking System | Material: | Steel |
| Condition: | New | Transport Package: | Container. Bulk Ship. RO-RO |
| Specification: | 5.8 Tons | Trademark: | Jin Rui |
| Origin: | Liangshan, Shandong Province, China | Supply Ability: | 3000 |
| Customization: | Available | After-sales Service: | 1 Year |
| Warranty: | 1 Year |

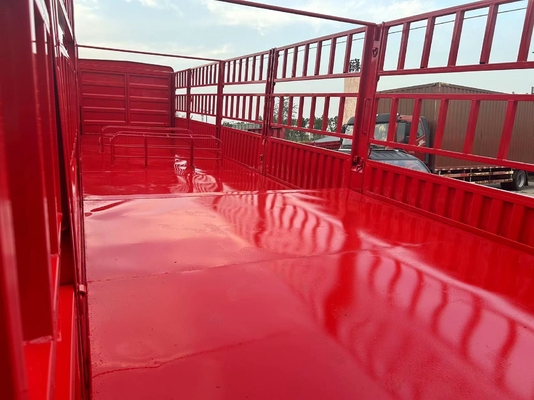

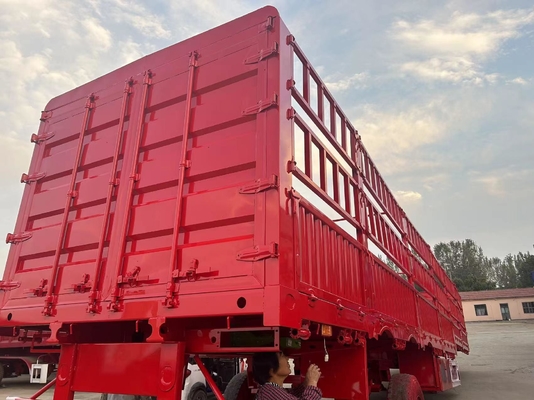

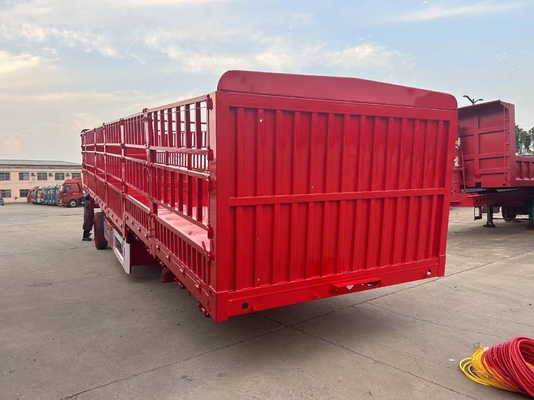

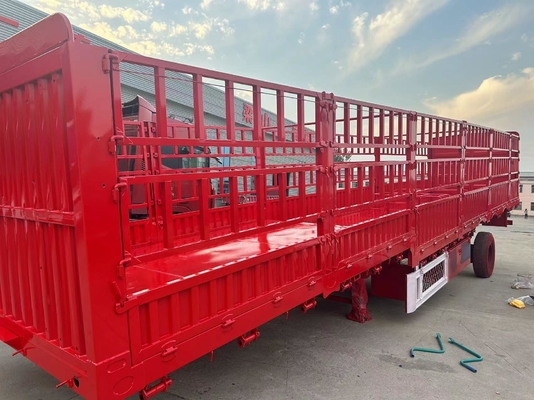

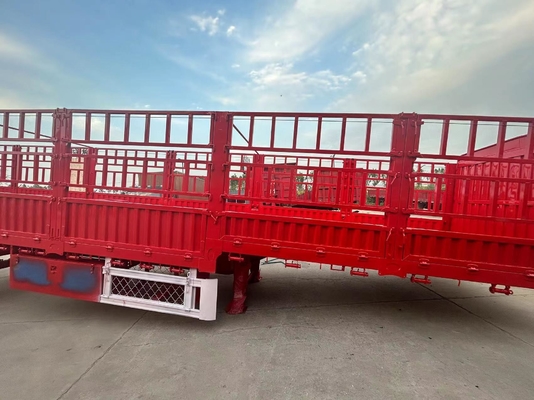

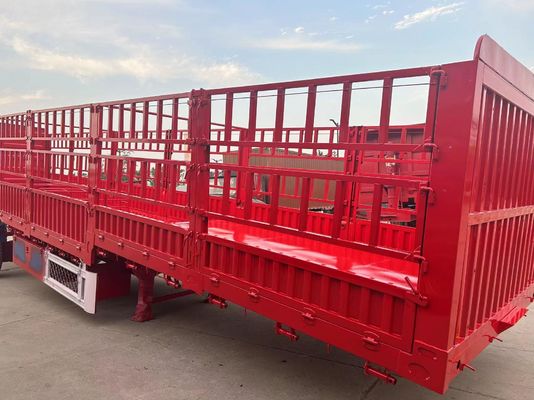

| Description | Fence semi trailer |
| Dimension(mm) | 13000/12500/12000×2500/2550×3380/3580/3780/3980 |
| Vehicle Weight | 6.9T-7.3T |
| Loading Capacity | 40-50T |
| King Pin | 50#/90# |
| Axle | 3*13T FUWA Axles |
| Tire | Vacuum tire 12R22.5*12 |
| Main Beam | Q345B steel Beam height: 500 mm. Upper plate: 14 mm, Bottom Plate: 16mm. Middle: 8mm |
| Landing Gear | single acting,manual operating,heavy duty |
| Suspension System | Leaf Spring suspension |
| Steel leaf spring | 90(W)mm*13(Thickness)mm*8pcs |
| Braking System | Dual line pneumatic brake,with hose and connector |
| ABS | Optional |
| Electronic System | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
| Painting | Complete chassis sand blasting to clean rust, 1coat of Environmentally anticorrosive prime, 2coats of baking varnish. |
| MOQ | 1 Unit |
