Product Details:
|
| Tread: | 1820mm | Grade: | Heavy Duty |
|---|---|---|---|
| Types Of Suspension Systems: | Trailing Arm Type | Shape: | Flatbed |
| Axle Number: | 2.3 | Tire Number: | 10 |
| Self-dumping: | Self-dumping | ABS Anti-lock Braking System: | No ABS Anti-lock Braking System |
| Material: | Iron | Condition: | New |
| Tire: | 12r22.5 | Landing Leg: | 28t, Two Speed, Manual |
| Axle: | 13t Axle | Size: | 13500X3000X1550 Mm |

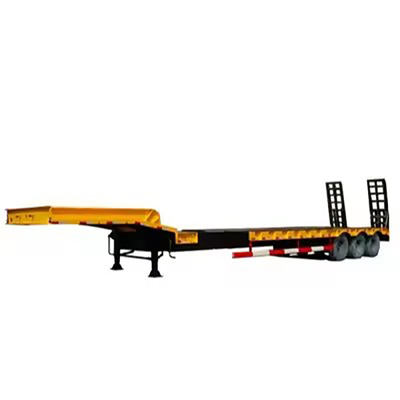

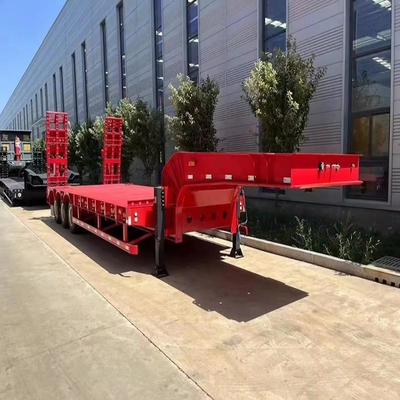

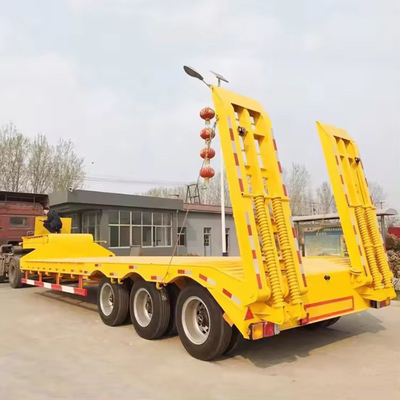

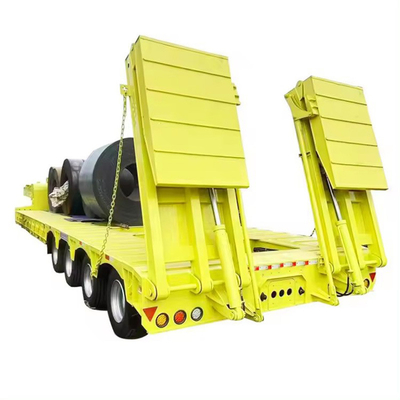

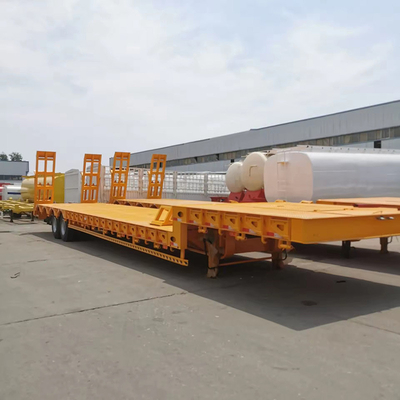

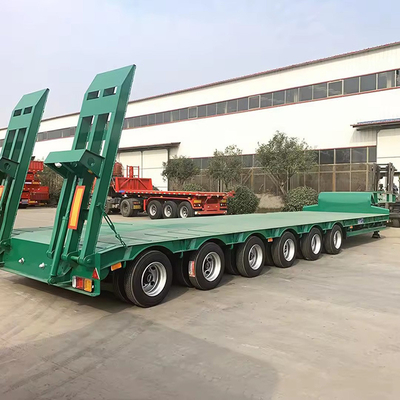

| Product Name: | Low Bed Semi Trailer | Name: | Semi Trailer |
| Transport Package: | Container. Bulk Ship. RO-RO | Specification: | Please Consult Customer Service |
| Trademark: | Jin Rui | Origin: | Liangshan, Shandong Province, China |
| HS Code: | 8716399000 | Supply Ability: | 500 Set/Sets Per Month |
| Customization: | Available | After-sales Service: | 1 Yearplease Consult Customer Service |
| Warranty: | 1 Year |
| Overall Dimensions | Front :14000x2600 Rear :12780x260 |
| Girder | Front Car: Upper Buy Plate 18mm, Lower Xing Plate 20mm Vertical Plate 12mm Height 580mm Rear Car: Upper Wing Plate 18mm, Lower Wing Plate 20mm Vertical Plate 12mm Height 580mm Wing Plate Quality :Q365: Web Material 700l |
| Axle | Factory Bridge, Normal Wheel Base 1850, 16ton No Abs And Brake Adjusting Arm /3/ Set |
| Tire | Factory With 12.00r20 Grain Smooth Flower 24Pcs |
| Rim | 8x18(Steel)/24/ Pcs |
| Plate Spring | 10 Pieces 16mm*120m/12/ Frame |
| Suspension | Factory With Reinforced Type |
| Bottom Plate | 3mm Thick Pattern Steel Plate |
| Front Stop | Flat Type Ladder And Frame |
| Side Beam | 180mm High Channel Steel Q355 |
| Beam | 120mm Through Beam |
| Type/Quantity Of Lock Heads | Front And Rear Vehicles Can Transport 1 40-Foot Non-Standard Container Respectively, And Can Also Transport 2 20-Foot Standard |
| Containers Respectively | |
| Poise Paint | Frame Sandblasted, Urethane Primer, Urethane Topcoat, Or powder, |
| Color To Be Determined | |
| Legs | 28 Tons Single Action/1/Set |
| Traction Pin | Front Car 90# Welding Type/16mm/1/Unit, Rear Car 90# Welding Type/12mm/1/Unit |
| Brake Air Chambers | 12 Double Chambers/Unit |
| Brake Valve | Domestic 6 Holes/1/Set |
| Spare Tire Rack | Wire Rope Type chain type |
| Toolboxes | With Side 1.6m Toolbox//Bench: (One On Each Front And Back) |
| Rope Tensioner | Standard |
| Circuit gas circuit | 24 Volt Electrical Ik, 7-Pin Jack, Sealed Wiring Harness,Standard with iron Horse brand |
| Fenders | Front Rubber. Iron Rear |
| Rear Protective Net | Weekly Style |
| Saddle | Reinforced 90# Saddle/1 |
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack. We has established good strategic partnership with many shipping companies which have professional logistics operation, ect to meet different requirements of different customers.We also supervise the whole process from the factory to the port designated by the customer to ensure that the ustomer's products arrive at the destination accurately and safely.
